Description
Product Code: 47349-000

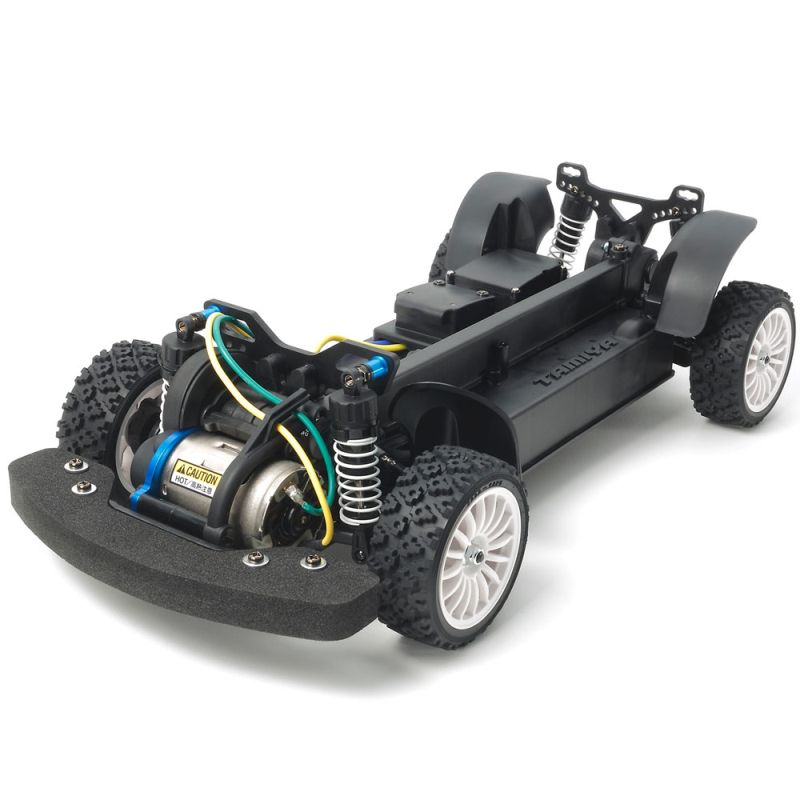

This limited-edition version of the versatile XV-01 chassis is set up to use long shock dampers and provides an even greater off-road driving experience, while still keeping the same base as the original XV-01.
The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with front and rear enclosed gearboxes equipped with gear differential units that utilize fluid to control differential action. The box-like main frame incorporates covers and wheel-well liners to provide superb protection against dirt and debris. The 4-wheel double wishbone suspension ensures plenty of suspension stroke and ground clearance and is matched with Rally Block Tires on replica wheels for realistic handling.
Features:
- Uses dedicated 3.5mm thick FRP damper stays front and rear to allow maximum exploitation of the extended stroke provided by included CVA mini oil dampers.
- Suspension arm parts are designed to allow the car to run optimally using ground clearance of 10mm or more, making it ideally-suited to off-road terrain.
- The XV-01 chassis uses a front-motor, belt-driven 4WD layout with the drive belt, battery and R/C equipment protected from dirt and debris by using integrated covers.
- White 16-spoke wheels are paired with rally block tires.
- TRF501X Setting Springs (Hard – White/Blue) included.
- Compatible with Subaru Impreza WRC Monte Carlo ’07 (Item 51289), Subaru Impreza WRC 2008 (Item 51364) or Mitsubishi Lancer Evo. X (Item 51376) body parts sets.
What’s in the box?
- 1/10 scale R/C model assembly kit.
- 540-type brushed motor
What you’ll need:
- Tamiya Rally Body Set
- 2-channel radio
- Steering servo
- ECS
- 7.2-7.4volt battery & battery charger
- Tamiya PS Paint
Specifications:
- Adjustable Gear Ratio: Yes
- Bearings: Includes full ball bearings
- Chassis Material: FRP Fiberglass Reinforced Plastic
- Chassis Type: XV-01
- Construction Type: Assembly Kit
- Differential Type: Gear-Type (Oil-Filled)
- Discontinued: True
- Drive Type: 4WD
- Motor: Brushed 540 Type
- Scale: 1/10
- Shock Damper: CVA Oil Filled
- Suspension: 4-wheel fully independent double wishbone
- Terrain Use: Multi-Purpose
Item Dimensions – Without Packaging:
- Length: 384mm,
- Width: 185mm
- Wheelbase: 257mm
